XSD Tools

This part of the application provides a suite of tools for working with XML Schemas (XSD). These tools help you understand, document, and use XSD files effectively.

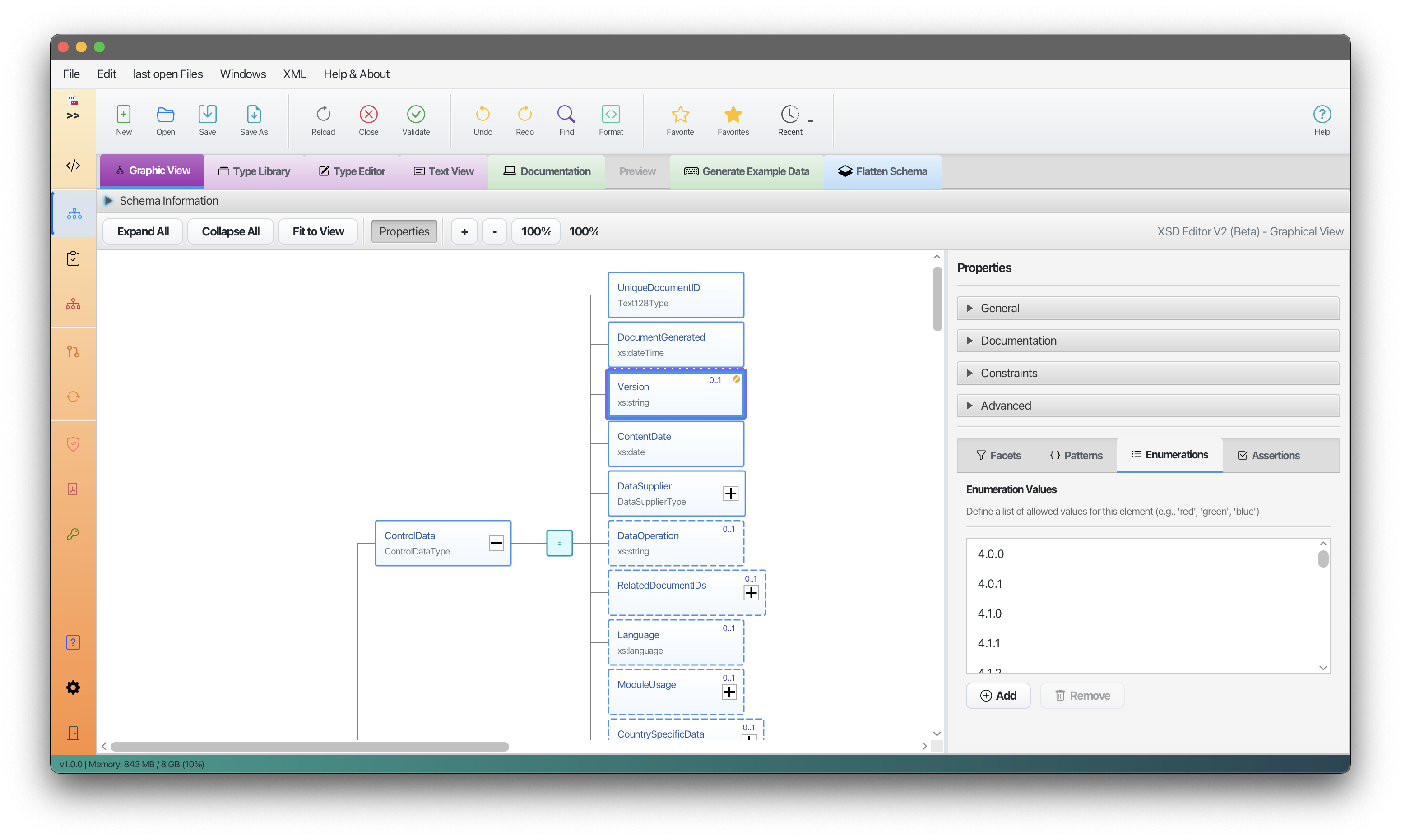

1. XSD Viewer

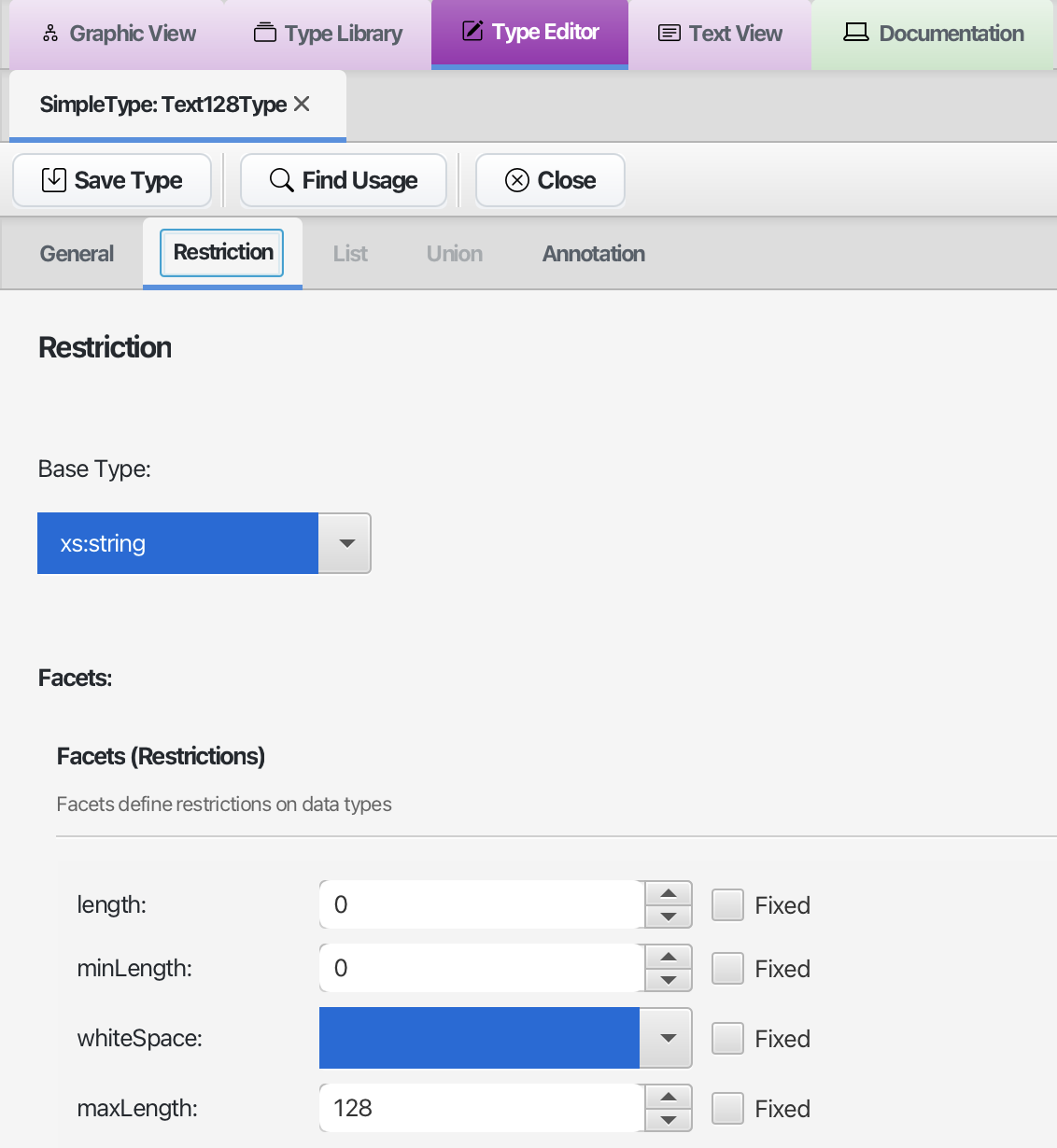

The XSD Viewer is the central feature for exploring and editing your schemas. It has two main views:

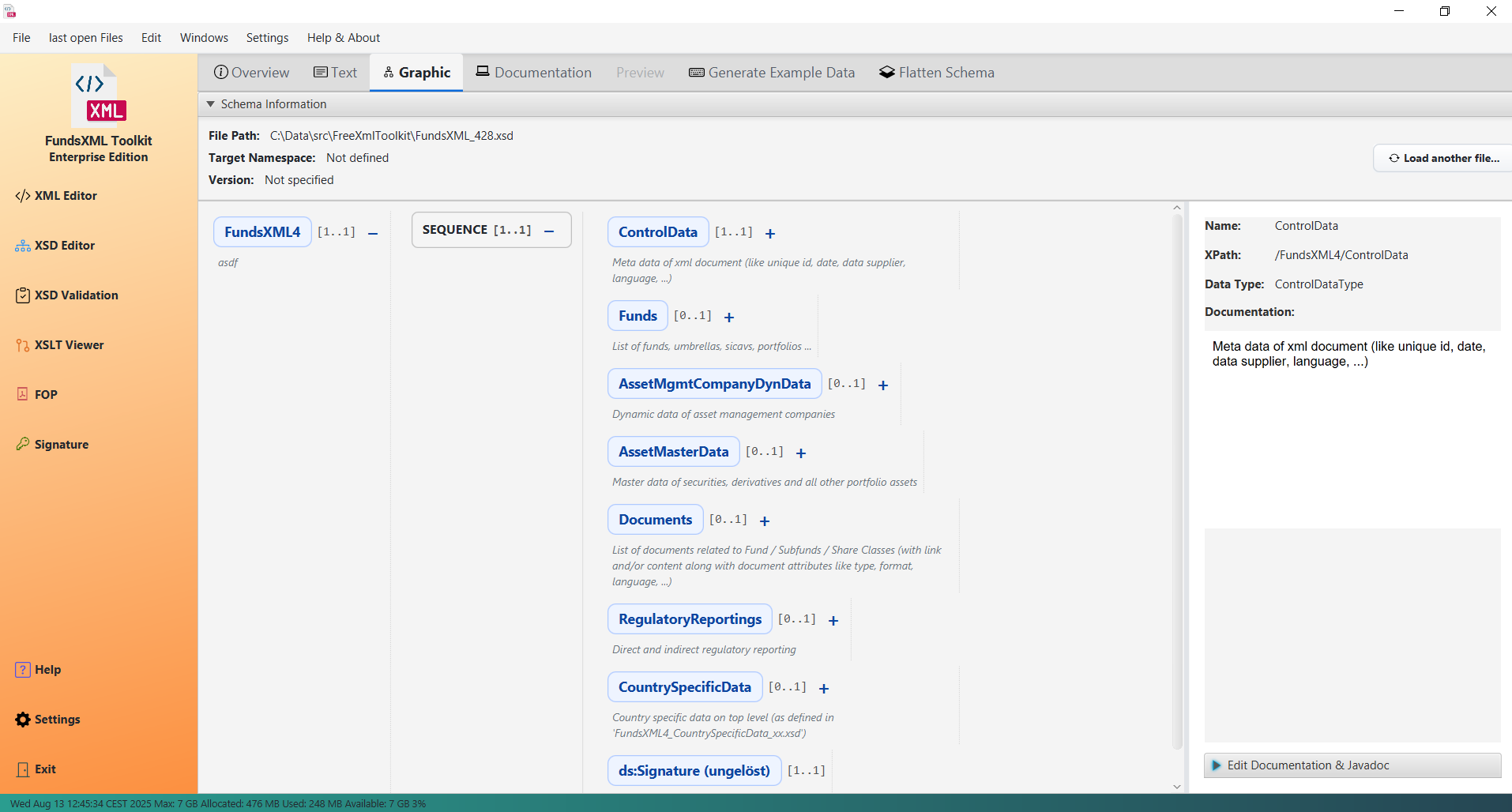

Graphical View

• Visual Tree: Displays your XSD file as an interactive, hierarchical tree. This makes it easy to see the structure of your schema, including elements, types, and their relationships.

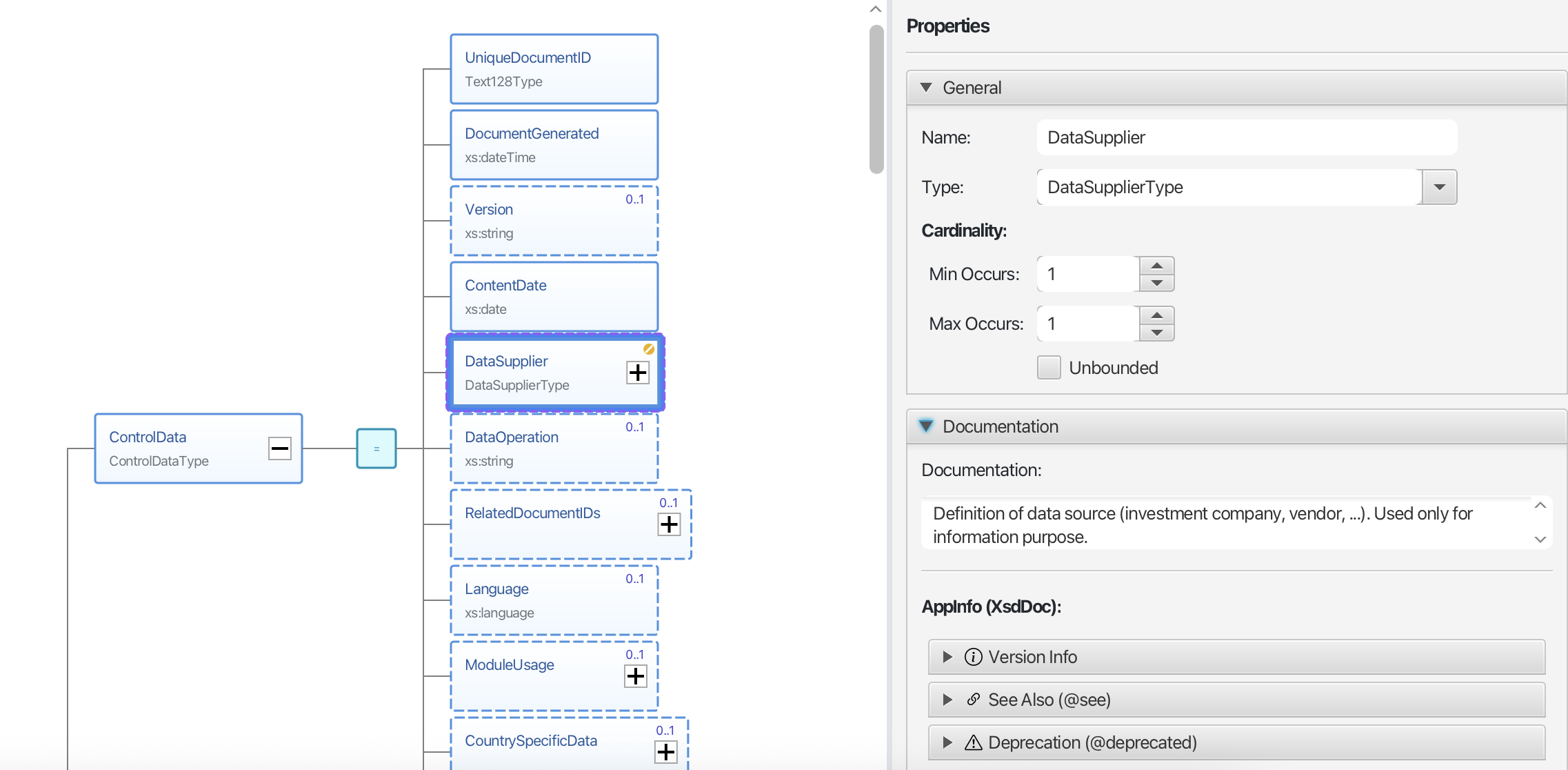

• Documentation Editor: You can directly add or edit the main documentation and technical Javadoc-style comments for the entire schema right from the graphical view. Your changes can be saved back to the XSD file.
• Example Value Editor: For specific elements in the tree, you can add and save example values. This is useful for documenting how the data should look.
• Metadata Display: Key information like the schema’s target namespace and version is clearly displayed.

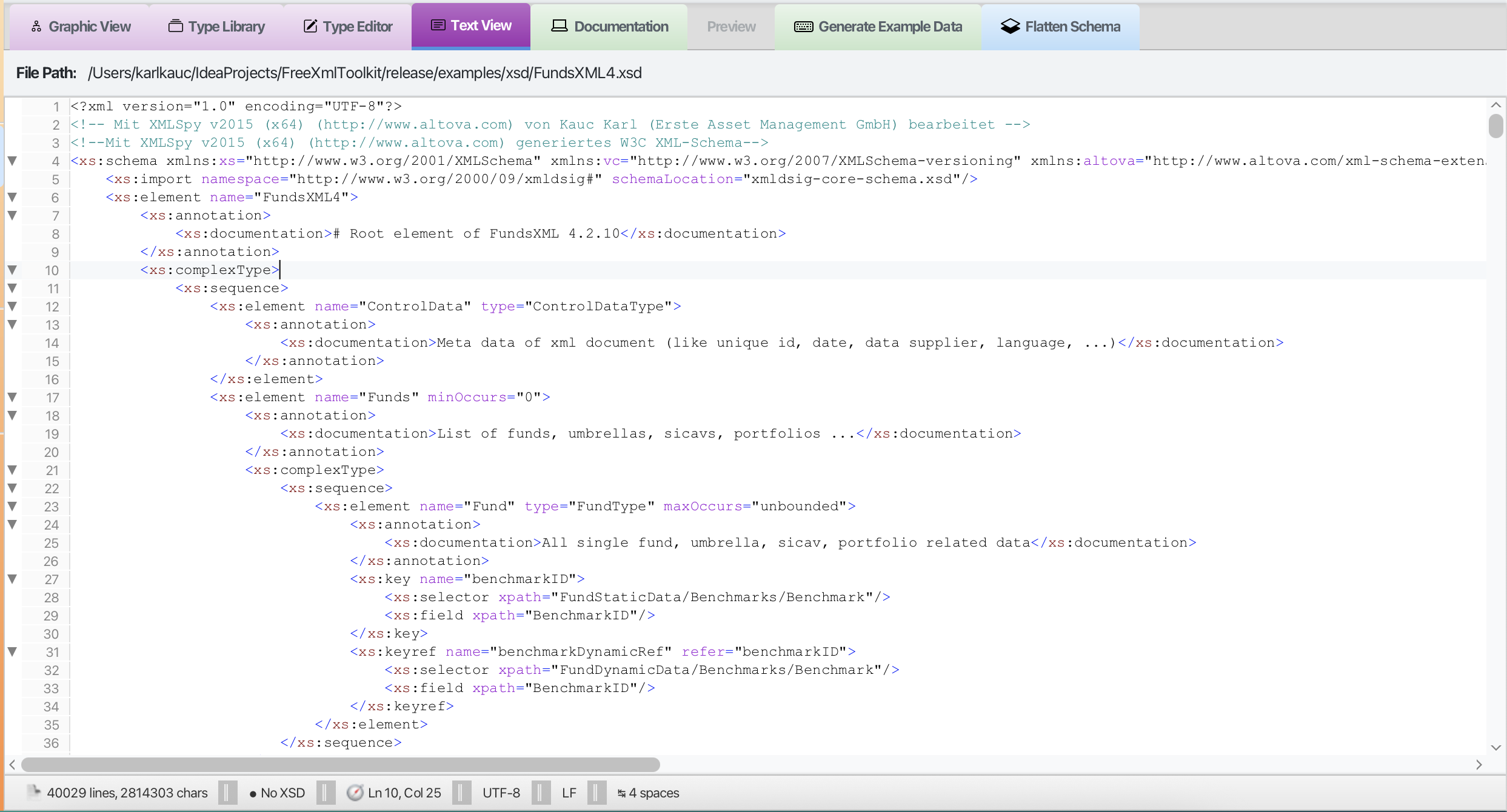

Text View

• Full Code Editor: Provides a complete text editor for viewing and editing the raw source code of the XSD file.
• Syntax Highlighting: The code is colored to make it easy to read and identify different parts of the schema syntax.
• Search and Replace: A powerful find-and-replace feature is built-in, allowing you to quickly locate and change text within the XSD file.

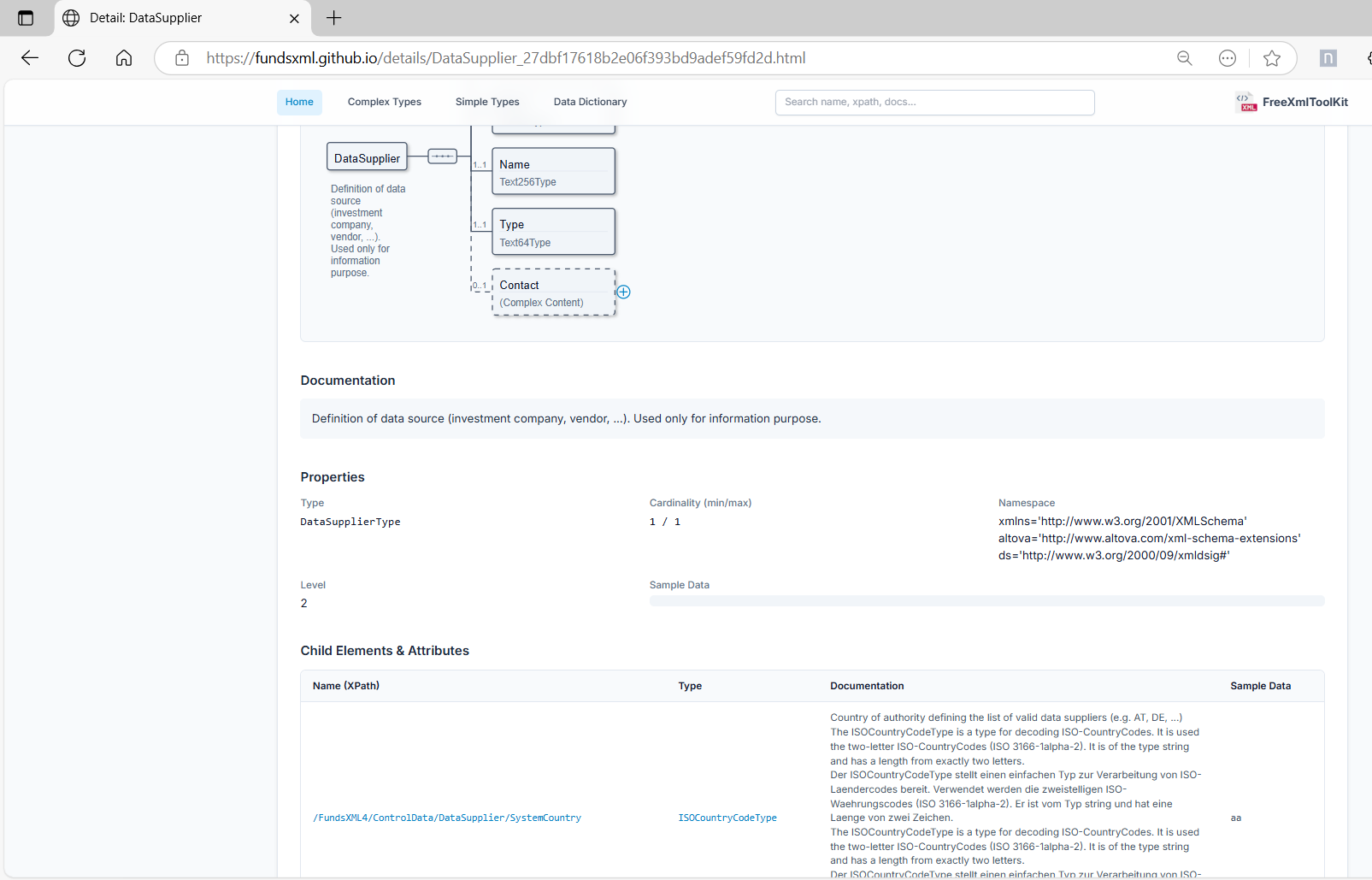

2. Documentation Generator

This powerful feature automatically creates user-friendly HTML documentation from your XSD file.

• Generate HTML Docs: With a few clicks, you can produce a full website that documents every element and attribute in your schema.
• Customization Options:
  • Choose between different image formats (PNG or SVG) for the diagrams in the documentation.
  • Optionally render documentation written in Markdown for richer formatting.
• Live Preview: After generating the documentation, you can launch a live preview in a new tab directly within the application. This starts a local web server to display the HTML files.
• Easy Access: A button allows you to directly open the folder containing the generated documentation files.

Adding Technical Documentation (XsdDocInfo)

In addition to the standard <xs:documentation> tag for user-friendly descriptions, you can embed structured, Javadoc-style technical information directly into your XSDs. This is done by adding multiple <xs:appinfo> tags within an <xs:annotation>. The Documentation Generator recognizes this information and displays it in a distinct, technical section of the generated HTML, separate from the main documentation.

This allows you to keep technical notes for developers alongside the general-purpose documentation.

Supported Annotations

The following annotations are supported inside the source attribute of an <xs:appinfo> tag:

• @since: Specifies the version in which the element or feature was introduced.
• @see: Provides a cross-reference to another element, type, or an external resource. Can be plain text or a structured link.
• @deprecated: Marks an element as deprecated, optionally including a message about its replacement or removal timeline.
• {@link XPath}: A special tag used within @see or @deprecated to create a clickable hyperlink to another element in the generated documentation. The XPath should be the absolute path from the root of the XML.

Example

Here is the correct way to structure your XSD to include this technical information. Each piece of metadata is placed in its own <xs:appinfo> tag using the source attribute.

<xs:element name="Transaction">
  <xs:annotation>
    <!-- This is the standard, user-facing documentation -->
    <xs:documentation>
      Represents a single financial transaction.
    </xs:documentation>

    <!-- This is the technical, developer-facing documentation -->
    <xs:appinfo source="@since 4.0.0"/>
    <xs:appinfo source="@see {@link /FundsXML4/ControlData/RelatedDocumentIDs/RelatedDocumentID}"/>
    <xs:appinfo source="@see Attention. See also other values."/>
    <xs:appinfo source="@deprecated do not use any more. use {@link /FundsXML4/AssetMasterData} and {@link /FundsXML4/AssetMasterData/AssetDetails} instead."/>

  </xs:annotation>
  <xs:complexType>
    <!-- ... element definition ... -->
  </xs:complexType>
</xs:element>

When the HTML documentation is generated, it will clearly display the “since,” “see,” and “deprecated” information in a formatted block. Any {@link} tags will be converted into clickable hyperlinks, providing valuable, interactive context for developers using the schema.

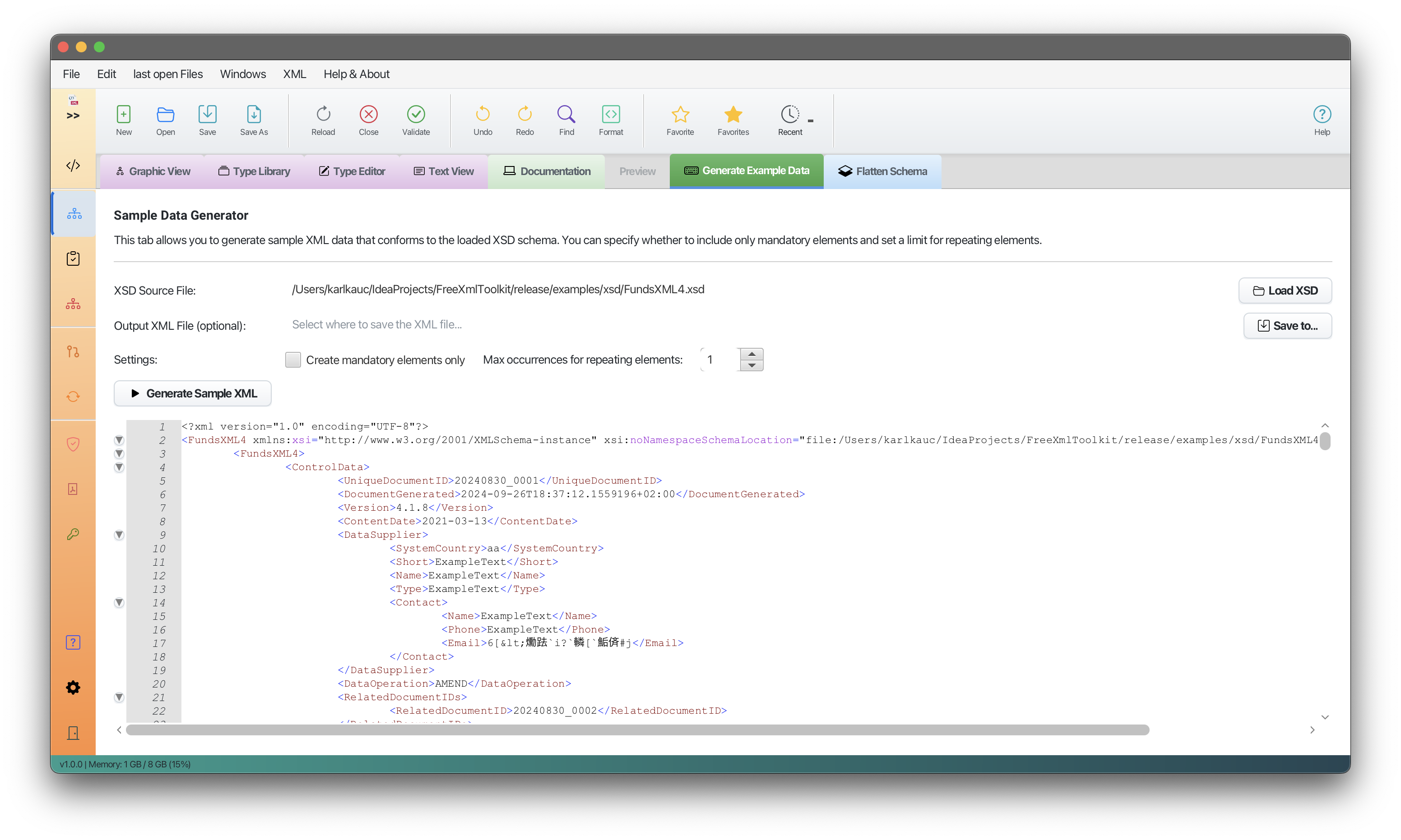

3. Sample XML Generator

This tool creates a sample XML file based on your XSD schema. This is very useful for testing or for providing an example of what a valid XML document should look like.

• Generate Sample Data: Creates an XML document that conforms to the rules of your selected XSD.
• Control the Output:
  • Mandatory Only: You can choose to generate an XML file that includes only the elements and attributes that are required by the schema.
  • Max Occurrences: You can set a limit on how many times a repeating element should be generated.
• Instant Preview: The generated XML is displayed in a text area with syntax highlighting.
• Save the File: You can save the generated sample XML to a file on your computer.

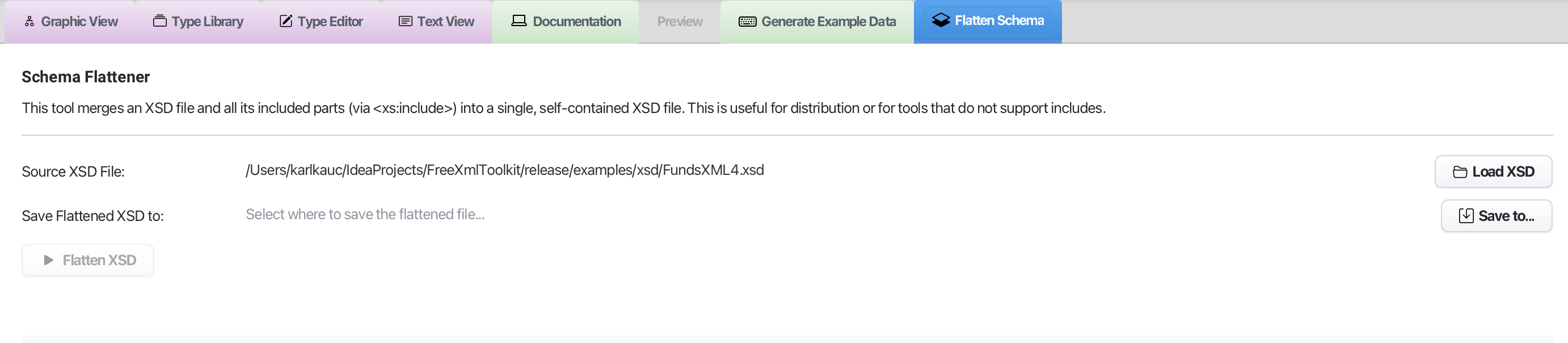

4. XSD Flattener

If you have a complex XSD that imports other XSD files, the flattener tool can combine them all into a single, self-contained XSD file.

• Merge Schemas: It resolves all xs:include and xs:import statements and merges the content into one file.
• Simple Process: You select your main XSD file, choose a destination for the new flattened file, and the tool handles the rest.
• View the Result: The content of the new, flattened XSD is displayed in a text editor after the process is complete.

---
