Schema Library¶

Version: 2.1.0

The Schema Library maps namespaces (and JSON $schema URIs) to schema files, so documents that don't carry an explicit reference to their schema can still be validated and get IntelliSense automatically.

1. What the Schema Library is¶

A mapping connects a namespace - or, for no-namespace XSDs, a root element name - to a schema location: a local file path or an http(s) URL. The library draws mappings from three sources, tried in this order:

Your mappings - entries you added yourself (the Mappings tab, source USER).
XML catalogs - OASIS catalog.xml files you registered (the Catalogs tab).
Bundled standards - 25 well-known W3C/OASIS/industry schemas shipped with the application (see Bundled standards).

The first match wins, and a schema you bind manually in the Validation panel or status bar always takes priority over anything the library resolves.

The status bar's schema indicator shows how the active binding was resolved: a plain XSD: invoice.xsd for a schema the document declared itself, XSD: invoice.xsd (catalog) for one an XML catalog entry redirected to, XSD: invoice.xsd (library) for one a Schema Library mapping supplied, and XSD: invoice.xsd (manual) for one you picked by hand; hover the indicator for the resolved location and, for catalog/library bindings, the matched namespace or catalog target.

The library is consulted whenever a document needs a schema but doesn't say which one:

XML auto-binding - a document without xsi:schemaLocation / xsi:noNamespaceSchemaLocation is looked up by its root element's namespace, or (for no-namespace schemas) by the root element's local name.
xs:import / xs:include resolution - during validation, in the XSD editor, and in the legacy schema parser, an import or include that can't be resolved locally is looked up by its namespace or system ID.
JSON $schema URIs - a JSON document's $schema member that isn't a plain local/HTTP reference resolves through the library. Meta-schema ids (json-schema.org/...) are not bundled, so a JSON schema document still binds nothing - but you can map one yourself as a USER entry if you want schema documents validated against their dialect.
XSLT/XQuery doc() / document() - a system ID the engine can't resolve directly falls back to the library (and catalogs) the same way.

2. Mappings tab¶

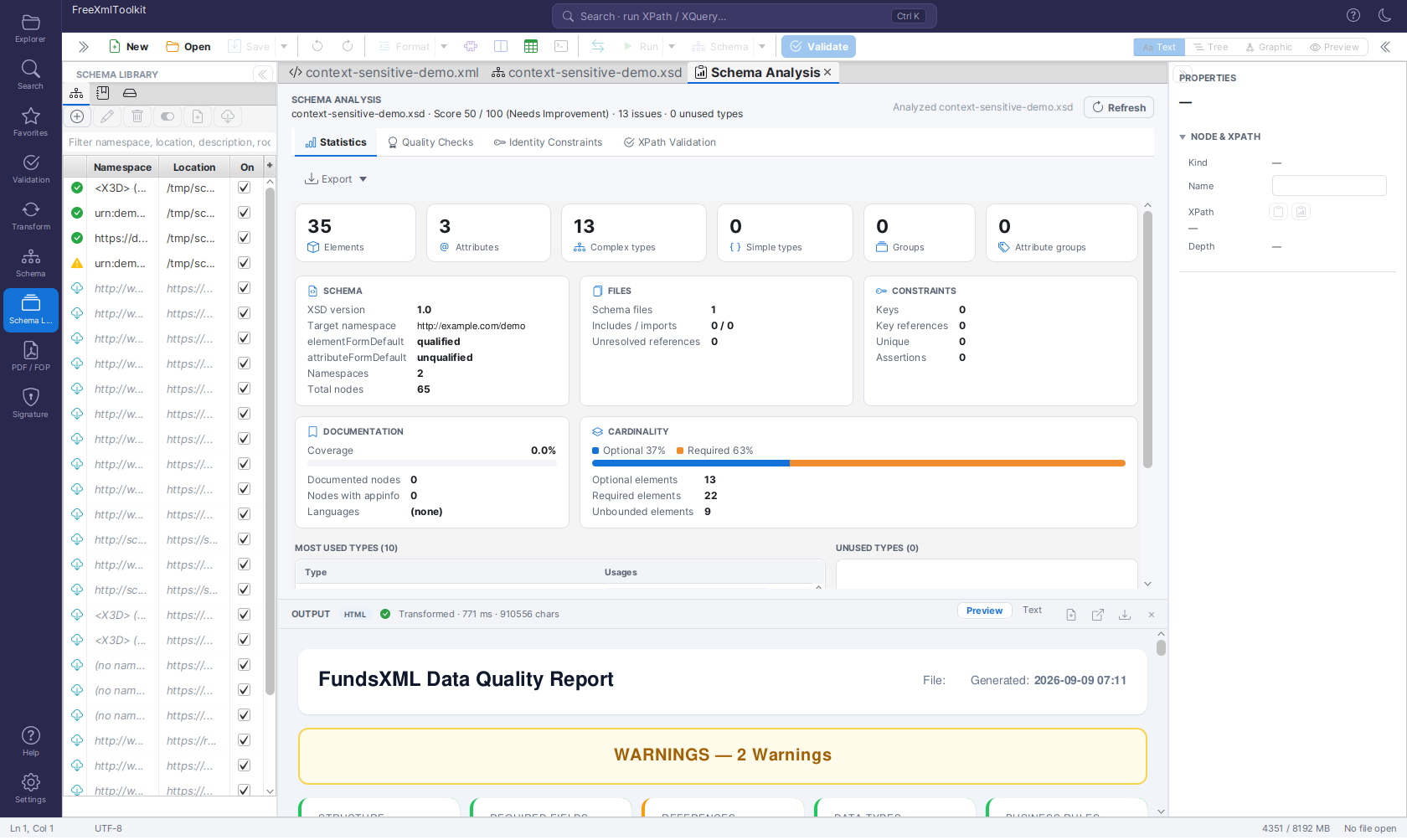

Schema Library - Mappings The Mappings tab: namespace → schema entries with status icons, filter and toolbar.

The table has one row per mapping: a status icon, Namespace (or <root> (no namespace) for root-element mappings), Location and an On checkbox to enable/disable the row without deleting it. Two more columns, Kind (XSD or JSON_SCHEMA) and Source (user, catalog or bundled), are hidden by default to keep the table readable in the narrow side panel - click the small menu button at the table's top-right corner to show them. The filter field searches namespace, location, description and root element. Bundled rows render in italics and can only be enabled/disabled, never edited or removed.

Icon	Status	Meaning
✔	Available	The schema file exists locally, or its remote copy is already cached
☁	Not downloaded yet	A remote schema that hasn't been fetched yet
⚠	File missing	A local path that no longer exists on disk
✖	Error	The last download/verification attempt failed (hover for the error message)

Toolbar actions: Add mapping… and Edit… open the mapping dialog (namespace, location, kind, description, optional root element); Remove deletes a USER mapping; Enable / disable toggles the On column for the selected row; Add schema of current document prefills a new mapping from the active document's bound schema; and Download / verify materializes a remote entry immediately (also clearing a remembered failure, see Troubleshooting). Double-clicking a row opens the resolved schema file as an editor tab; the context menu offers the same Open schema, Edit…, Remove and a Copy namespace action.

3. XML catalogs¶

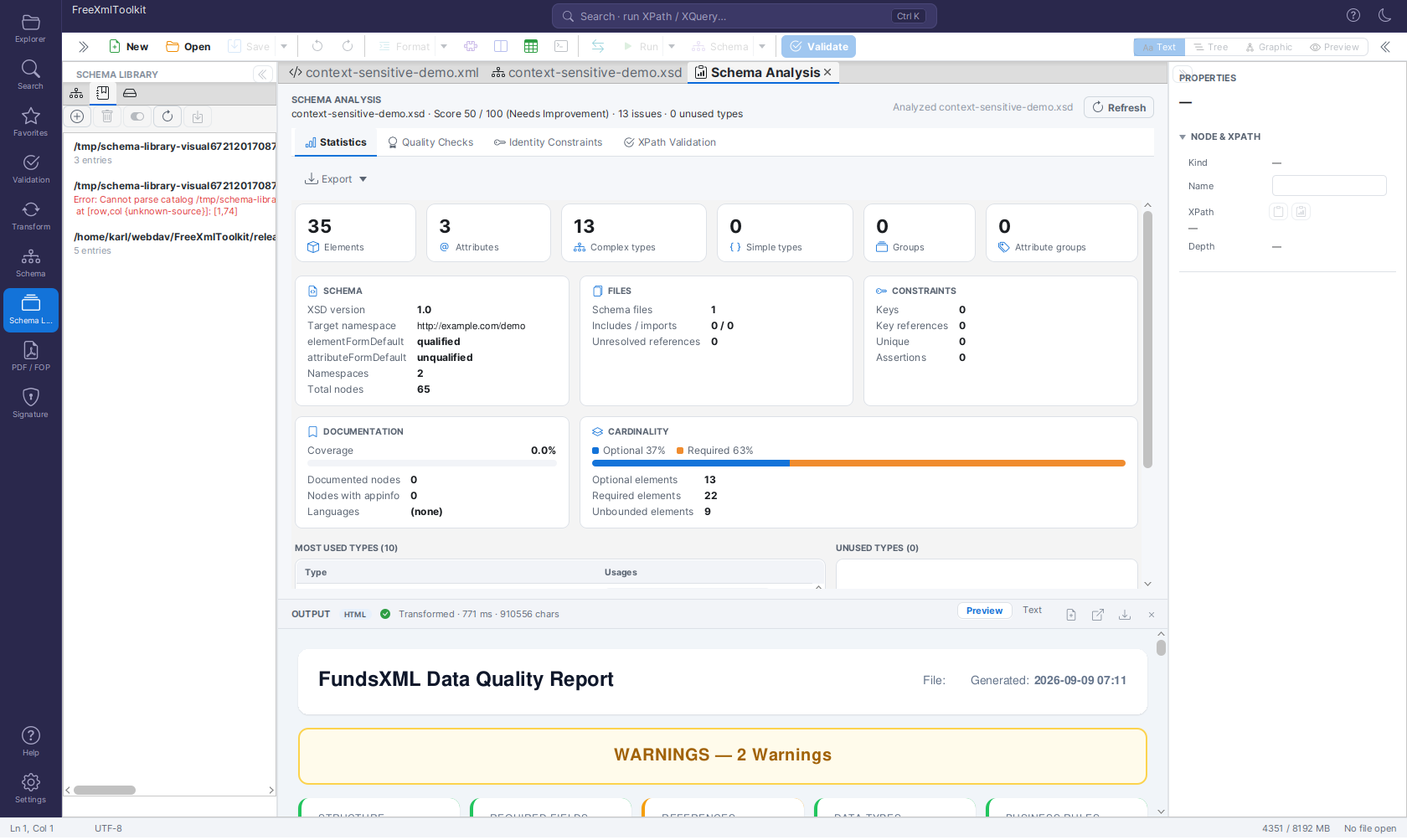

Schema Library - Catalogs The Catalogs tab: registered OASIS catalog.xml files with their entry count or error.

The Catalogs tab registers OASIS catalog.xml files and supports the core catalog elements: system, public, uri, rewriteSystem, rewriteURI, nextCatalog and xml:base. Catalogs are parsed without any network access - nextCatalog is only followed for local files, with cycle protection and a depth cap of 10.

During validation a reference is looked up by its system identifier first, then by its public identifier (public entries), and finally by namespace. public entries are therefore honoured for schema resolution even though they cannot be imported into the Mappings tab (a public identifier is not a namespace).

Add catalog… registers a catalog.xml file; Remove unregisters it (the file itself is untouched); Enable / disable toggles it without removing it; Reload catalogs re-parses every registered catalog (useful after editing one by hand).
Each row shows either the parsed entry count or, if the file is missing/invalid, a red error message.
Import entries into Mappings… converts the catalog's system/uri entries into regular Mappings-tab entries: a preview dialog lists what would be imported, with entries that already exist (by namespace/kind) shown disabled so you don't create duplicates.
Double-click a catalog row to open the catalog.xml file itself as an editor tab.

Example catalog mapping the bundled X3D 4.0 namespace to a local copy:

<?xml version="1.0"?>
<catalog xmlns="urn:oasis:names:tc:entity:xmlns:xml:catalog">
    <uri name="http://www.web3d.org/specifications/x3d-4.0.xsd"
         uri="schemas/x3d-4.0.xsd"/>
</catalog>

Try it: the shipped catalog example¶

release/examples/catalog/ contains a complete, self-contained demo: an invoice schema that imports shared types from the non-existent host schemas.example.org, a catalog.xml (with system, rewriteSystem, public and a chained nextCatalog) that maps every such reference to the local schemas/ folder, and three instance documents — one with an unreachable xsi:schemaLocation, one with only a namespace, one with deliberate errors. Register catalog.xml in the Catalogs tab, open the documents and validate; the folder's README.md walks through each step.

4. Schema cache¶

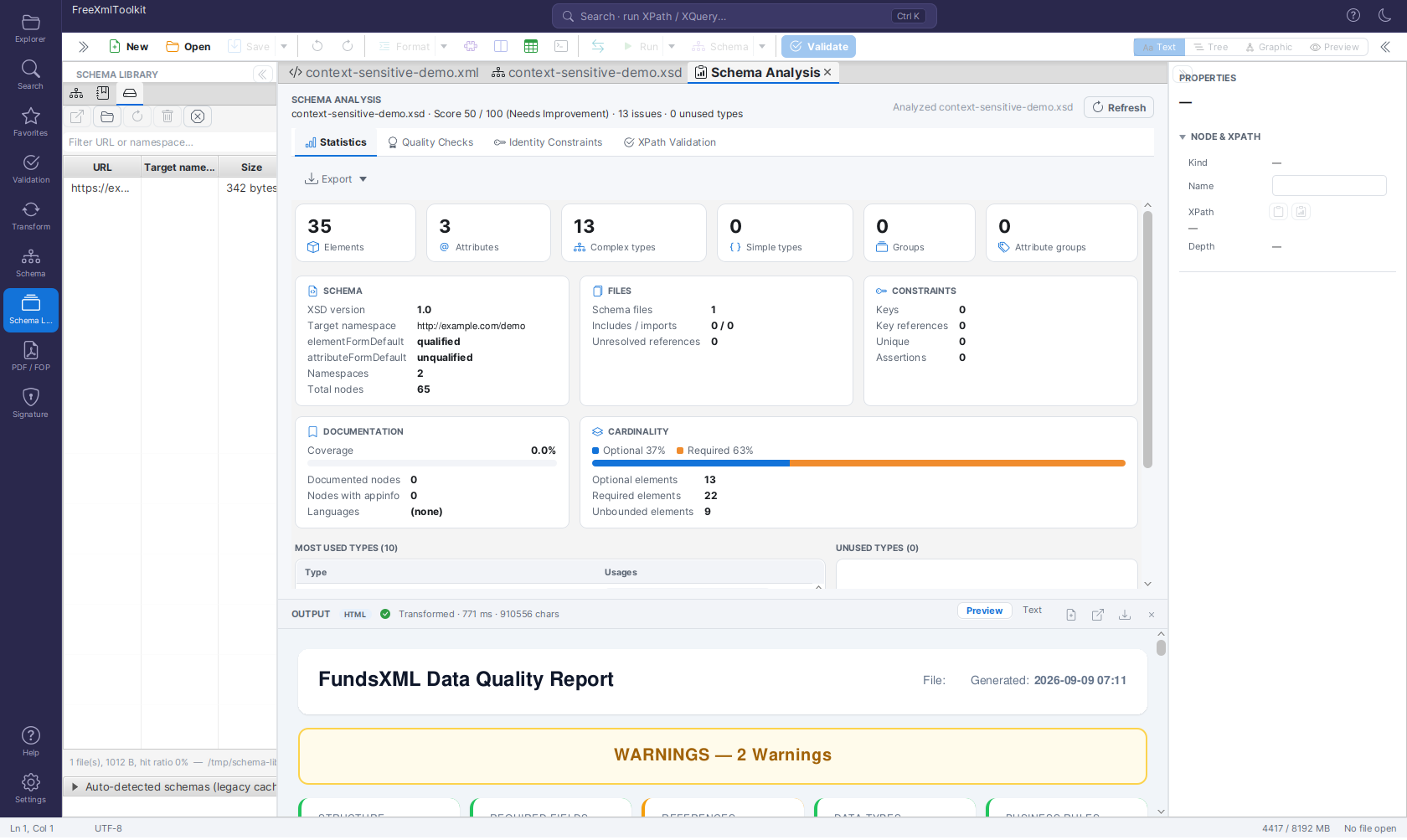

Schema Library - Cache The Cache tab: remote schemas downloaded and cached under ~/.freeXmlToolkit/cache/schemas.

Every remote schema resolved through the library (or downloaded because a document referenced it directly) is cached under ~/.freeXmlToolkit/cache/schemas. The Cache tab lists URL, Target namespace and file Size by default, with a filter over URL/namespace. Two more columns, Downloaded timestamp and Hits (access count), are hidden by default - click the table's menu button to show them. Open opens the cached file as an editor tab; Reveal shows the cache folder in the system file manager; Refresh re-downloads the selected entry; Delete removes one cached file (re-downloaded on next use); Clear wipes the entire cache. A footer line reports the total file count, total size and the cache hit ratio.

A collapsible "Auto-detected schemas (legacy cache)" group underneath holds the older, separate cache of schemas auto-downloaded from xsi:schemaLocation references (one folder per schema URL, keyed by an MD5 hash). It is read-only except for a Clear button; those files are simply re-downloaded the next time a document references them.

5. Bundled standards¶

FreeXmlToolkit ships a curated list of 25 well-known namespace → schema mappings so common standards validate out of the box, without you having to hunt down and register the schema yourself. Bundled entries are grouped by family:

W3C core - xml (XML namespace attributes), XMLSchema (schema for schemas), xmldsig-core, xmlenc-core, XLink 1.1, XInclude 1.0, XSLT 2.0/3.0 stylesheet schema.
Markup - XHTML 1.0 Strict, SVG 1.1, MathML 3.
Web services - SOAP 1.1 and 1.2 envelopes, WSDL 1.1.
3D graphics - X3D 3.0 through 4.0. X3D documents carry no namespace (they point at their schema with xsi:noNamespaceSchemaLocation), so these are no-namespace entries: 4.0 and 3.3 additionally declare the root element X3D and are found by auto-binding (4.0 is listed first and therefore wins); 3.0-3.2 are reached by their location whenever a document or an xs:import names that URL.
Finance/industry - FundsXML 4, XBRL 2.1 (instance + linkbase), UBL 2.1 (Invoice, Order, CreditNote), UN/CEFACT Cross Industry Invoice D16B (ZUGFeRD/Factur-X).

The JSON Schema meta-schemas are deliberately not bundled: $schema in a JSON schema document declares its dialect, not a validation binding, and a bundled meta-schema mapping would bind every schema document to it. Add one as your own mapping if you want that.

The list itself lives in src/main/resources/schema-library/bundled.json. Bundled entries are not downloaded at install time - like any remote mapping, the actual schema file is fetched into the cache the first time it's needed, so a bundled entry needs network access once before it shows the ✔ Available status.

Offline rule: a remote library entry is downloaded on first use only when remote downloads are permitted. Starting the application with -Dfxt.schema.namespaceFallback=false turns them off (the test suite does this) - resolution then uses local files and already-cached copies only, and every other entry is simply a miss. Local entries and cached entries always resolve, with or without network access.

6. Settings¶

The SCHEMA LIBRARY card in Settings (gear icon at the bottom of the activity bar) holds:

"Use the Schema Library to bind schemas automatically" - controls automatic binding in the editor only (default on): the XML root-namespace / root-element lookup and the JSON $schema lookup described in §1. Turning it off means a document without its own schema reference stays unbound. It does not switch the library off: the resolver hooks - xs:import / xs:include resolution, XML catalogs and XSLT/XQuery doc() / document() - keep consulting the library either way, and manual bindings are unaffected.
The library file location, ~/.freeXmlToolkit/schema-library.json, shown for reference.
A "Manage schema cache…" link that jumps straight to the Schema Library activity's Cache tab. The same link also appears in the TEMP & CACHE card.

7. Troubleshooting¶

A document isn't binding a schema I expect:

Check the namespace actually matches - a typo or a trailing slash difference means no match. For no-namespace XSDs, the library matches by root element name instead.
Make sure the mapping's On checkbox is checked; a disabled entry (including a disabled catalog) is skipped during resolution.
Confirm the "Use the Schema Library to bind schemas automatically" setting is on (it gates editor auto-binding only, not xs:import/catalog resolution).
If the document already has a manually bound schema (or an xsi:schemaLocation), that wins - the library is only consulted when there's no other reference.

A catalog shows a red error: the file is missing, unreadable, or not well-formed XML. Fix the file and click Reload catalogs, or check the nextCatalog chain - only local files are followed, and the depth is capped at 10.

A download keeps failing / the status stays ✖ error: hover the status icon for the error message. A failed download is remembered for 10 minutes to avoid hammering an unreachable server; use Download / verify on the Mappings tab to retry immediately.

A remote mapping never leaves ☁ "Not downloaded yet": remote downloads may be turned off (-Dfxt.schema.namespaceFallback=false); with them off only local and already-cached entries resolve. Use Download / verify to fetch one explicitly.

"URL is not allowed" when adding a mapping: the location resolves to a private or internal network address (loopback, link-local, RFC 1918 ranges, etc.) and is rejected as unsafe - remote schema locations must be reachable public URLs.
